Example Active-passive WAN optimization

Example Active-passive WAN optimization

In active-passive WAN optimization you add an active WAN optimization policy to the client-side FortiGate unit and you add a WAN optimization tunnel policy and a passive WAN optimization policy to the server-side FortiGate unit.

The active policy accepts the traffic to be optimized and sends it down the WAN optimization tunnel to the server- side FortiGate unit. The active policy can also apply security profiles and other features to traffic before it exits the client-side FortiGate unit.

A tunnel explicit proxy policy on the sever-side FortiGate unit allows the server-side FortiGate unit to form a WAN optimization tunnel with the client-side FortiGate unit. The passive WAN optimization policy is required because of the active policy on the client-side FortiGate unit. You can also use the passive policy to apply WAN optimization transparent mode and features such as security profiles, logging, traffic shaping and web caching to the traffic before it exits the server-side FortiGate unit.



Network topology and assumptions

On the client-side FortiGate unit this example configuration includes a WAN optimization profile that optimizes CIFS, HTTP, and FTP traffic and an active WAN optimization policy. The active policy also applies virus scanning to the WAN optimization traffic.

On the server-side FortiGate unit, the passive policy applies application control to the WAN optimization traffic.

In this example, WAN optimization transparent mode is selected in the WAN optimization profile and the passive WAN optimization policy accepts this transparent mode setting. This means that the optimized packets maintain their original source and destination addresses. As a result, routing on the client network must be configured to route packets for the server network to the client-side FortiGate unit. Also the routing configuration on the server network must be able to route packets for the client network to the server-side FortiGate unit.

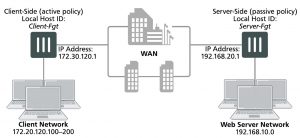

Example active-passive WAN optimization topology

General configuration steps

This section breaks down the configuration for this example into smaller procedures. For best results, follow the procedures in the order given:

1. Configure the client-side FortiGate unit:

  • Add peers.
  • Add a WAN optimization profile to optimize CIFS, FTP, and HTTP traffic.
  • Add firewall addresses for the client and web server networks.
  • Add an active WAN optimization policy.
  1. 2. Configure the server-side FortiGate unit by:
  • Add peers.
  • Add firewall addresses for the client and web server networks.
  • Add a passive WAN optimization policy.
  • Add a WAN optimization tunnel policy.



Configuring basic active-passive WAN optimization – web-based manager

Use the following steps to configure the example WAN optimization configuration from the client-side and server- side FortiGate unit web-based manager.



To configure the client-side FortiGate unit

1. Go to WAN Opt. & Cache > Peers and enter a Local Host ID for the client-side FortiGate unit:



Local Host ID                            Client-Fgt

2. Select Apply.

3. Select Create New and add a Peer Host ID and the IP Address for the server-side FortiGate unit:



Peer Host ID                               Server-Fgt

IP Address                                 192.168.20.1

4. Select OK.

5. Go to WAN Opt. & Cache > Profiles and select Create New to add a WAN optimization profile to optimize CIFS, HTTP, and FTP traffic:



Name                                           Custom-wan-opt-pro

Transparent Mode                    Select

6. Select the CIFS protocol, select Byte Caching and set the Port to 445.

7. Select the FTP protocol, select Byte Caching and set the Port to 21.

8. Select the HTTP protocol, select Byte Caching and set the Port to 80.

9. Select OK.

10. Go to Policy & Objects > Addresses and select Create New to add an address for the client network.



Category                                     Address

Address Name                           Client-Net

Type                                            IP Range

Subnet / IP Range                     172.20.120.100-172.20.120.200

Interface                                     port1

11. Select Create New to add an address for the web server network.

Category                                     Address

Address Name                           Web-Server-Net

Type                                            Subnet

Subnet / IP Range                     192.168.10.0/24

Interface                                     port2

12. Go to Policy & Objects > IPv4 Policy and select Create New to add an active WAN optimization security policy:

Incoming Interface                   port1

Source Address                        Client-Net

Outgoing Interface                   port2

Destination Address                 Web-Server-Net

Schedule                                    always

Service                                       HTTP FTP SMB

Action                                         ACCEPT

13. Turn on WAN Optimization and configure the following settings:

WAN Optimization                    active

Profile                                         Custom-wan-opt-pro

14. Turn on Antivirus and select the default antivirus profile.

15. Select OK.



To configure the server-side FortiGate unit

1. Go to WAN Opt. & Cache > Peers and enter a Local Host ID for the server-side FortiGate unit:



Local Host ID                            Server-Fgt

2. Select Apply.

3. Select Create New and add a Peer Host ID and the IP Address for the client-side FortiGate unit:



Peer Host ID                               Client-Fgt

IP Address                                 172.30.120.1

4. Select OK.

5. Go to Policy & Objects > Addresses and select Create New to add an address for the client network.



Category                                     Address

Address Name                           Client-Net

Type                                            IP Range

Subnet / IP Range                     172.20.120.100-172.20.120.200

Interface                                     port1

6. Select Create New to add a firewall address for the web server network.



Category                                     Address

Address Name                           Web-Server-Net

Type                                            Subnet

Subnet / IP Range                     192.168.10.0/24

Interface                                     port2

7. Select OK.

8. Select Policy & Objects > IPv4 Policy and select Create New to add a passive WAN optimization policy that applies application control.



Incoming Interface                   port2

Source Address                        Client-Net

Outgoing Interface                   port1

Destination Address                 Web-Server-Net

Schedule                                    always

Service                                       ALL

Action                                         ACCEPT

9. Turn on WAN Optimization and configure the following settings:



WAN Optimization                    passive

Passive Option                          default

10. Select OK.

11. From the CLI enter the following command to add a WAN optimization tunnel explicit proxy policy.

configure firewall explicit-proxy-policy edit 0

set proxy wanopt set dstintf port1 set srcaddr all set dstaddr all set action accept

set schedule always set service ALL

next end
